UHF Readers:

Access Control Panel:

Product	Description	Info
BT-ACP4 Read more	Access Control Panel, 4 doors with input ports (exit button, door sensor, auxiliar input) and 2 auxiliary output ports per door. Wiegand, RS485 and TCP/IP connection.30.000 users, 100.00 events. Interlock, Antipassback and Panic functions. Professional access software, metal case and power supply included in the package.

Others:

Product	Description
BT-USBRS232	USB to RS232 Converter. Required to configure BT-UHFMR100 and BT-UHFLR200 readers. Only one unit per client is needed no matter the reader quantity.

Demo Kits:

Product	Description	Info
BT-VACBSK100 Read more	Basic Starter Kit. Components: 1 x release button (BT-BTN), 1 x UHF Reader (BT-UHFMR100), 5 x windshield tags (BT-UHFWST), 5 x UHF PVC Cards (BT-UHFIDC), 1 x Access Control Panel (BT-ACP4), 1 x RS232 to USB Converter (BT-USBRS232), Access Control Software.
BT-VACPSK200 Read more	Professional Starter Kit. All BT-VACBSK100 components plus: 1 x BioAccess IP (BT-BACCIP), 1 x release button (BT-BTN), 1 x magnetic lock (BT-ML), 1 x brackets for BT-ML (BT-MLL y BT-MLZL), 1 x USB UHF reader (BT-UHFUSBR), 1 x standard camera (VT-STD370), 1 x bracket for standard camera (VT-STD-IB).

1) Warranty: 1 year against manufacturing defects.
2) Ask about our extended warranty plans up to 3 years.
3) The images are for illustrative purposes only.
4) The colors, the design, and some properties may vary from their original models.

Typical scenarios:

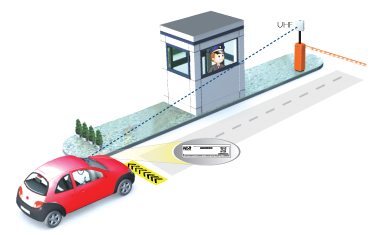

Scenario #1: An entry with barrier and uncontrolled exit.

Components: 1 x reader UHF BT-UHFMR100. 1 x Acces Control Panel BT-ACP4. N x windshield tags (BT-UHFWST) according to the number of vehicles. See optional components at the end of the list.

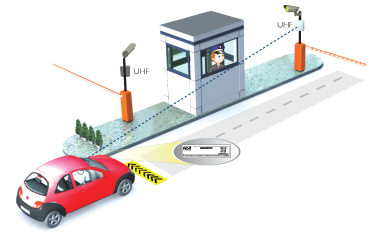

Scenario #2: An entry and exit with barrier (entry and exit are less than 15 meters away).

Components: 2 x readers UHF BT-UHFMR100. Both entry and exit readers can be connected to the same access control panel, which can hold up to 4 Wiegand reader connections. 1 x Access Control Panel BT-ACP4. Both entry and exit readers can be connected to the same access control panel, which can hold up to 4 barriers and locks. N x windshield tags (BT-UHFWST) according to the number of vehicles. See optional components at the end of the list.

Scenario #3: An entry and exit with barrier (entry and exit are more than 15 meters away).

Components: 2 x readers UHF BT-UHFMR10. 2 x Access Control Panel BT-ACP4. Although each panel accommodates up to 4 doors, in this case we can not connect the barrier for entry and exit to the same panel because of the distance that separates them. N x windshield tags (BT-UHFWST) according to the number of vehicles. See optional components at the end of the list.

OPTIONAL components for all scenarios.

• 1 x RS232 reader to USB (BT-USBRS232).
• 1 x open button (BT-BTN) for controlled opening a lookout.
• 1 x reader USB UHF (BT-UHFUSBR) pto add tags from PC with no need to get them closer to the main UHF reader.
• N x PVC UHF tags (BT-UHFIDC) if you want to control some vehicles with cards instead of stickers or if you want to keep double track of vehicle-driver.
• If you want to control a checkpoint pedestrian access:
  • 1 x BioAccess IP for access control device (BT-BACCIP).
  • 1 x open button(BT-BTN).
  • 1 x electromagnetic lock(BT-ML).
  • 1 x bracket for mounting of electroganetic lock(BT-MLL y BT-MLZL).
  • To see other models for access control of people and a complete list of accessories visit the section People Access Control.
• If you want to add video surveillance to entry and/or exit:
  • 1 x standard camera (VT-STD370).
  • 1 x bracket for standar camera (VT-STD-IB).
  • To see other camera models and additional accessories visit the section Video Surveillance.
